The central gasket isolates the flange faces. The sleeve isolates the bolt shank from the bolt hole. The G-10 glass epoxy washer isolates the nut and bolt head from the flange face — the third dielectric barrier. In a fully insulated flange joint, all three must be present. A kit installed without the washers, or with washers that have cracked or been replaced with steel washers during maintenance, leaves the bolting in direct contact with the flange. That single contact point shorts out the cathodic protection system and opens a galvanic corrosion path between dissimilar metals. The washer is not an accessory. It is a functional component of the isolation system.
| Dimension | G-10 Glass Epoxy (this page) | Phenolic washer |
|---|---|---|
| Compressive strength | 65,000 psi | 25,000 psi (typical) |
| Water absorption | 0.05% | 1.6% (typical) |
| Continuous temperature | 150°C (302°F) | 104°C–120°C (typical) |
| Dielectric strength class | 550–800 V/mil (batch dependent) | 500 V/mil (typical) |
| Best for | High bolt load, humid/wet service, higher temperature, long service life | Standard pressure, dry service, cost-sensitive kits |
In a flange isolation kit, the washer sits under the nut and carries the full bolt load through a small contact area. A phenolic washer can crush or absorb moisture under high load; a G-10 washer maintains thickness and dielectric strength under the same load. If the kit is specified for cathodic protection on a pipeline, G-10 is the default washer material. For the complete kit where the central gasket is phenolic or G-10, see Type E full-face isolation kits or Type F raised-face kits.
| Material | Continuous woven glass fabric, epoxy resin laminate |
|---|---|
| Standard | NEMA LI-1 G-10; ASTM D709 G-10; IEC 60893 EP GC 201 |
| Compressive strength | 65,000 psi |
| Flexural strength | 65,000 psi |
| Tensile strength | 50,000 psi |
| Water absorption | 0.05% |
| Continuous operating temperature | 150°C (302°F) |
| Dielectric strength | 550–800 V/mil class (confirm batch data sheet for the specific thickness) |
| Standard flange-kit thickness | 1/8″ (3.175 mm) |
| Standard bolt sizes | Metric M3–M24; imperial #4–1″ |

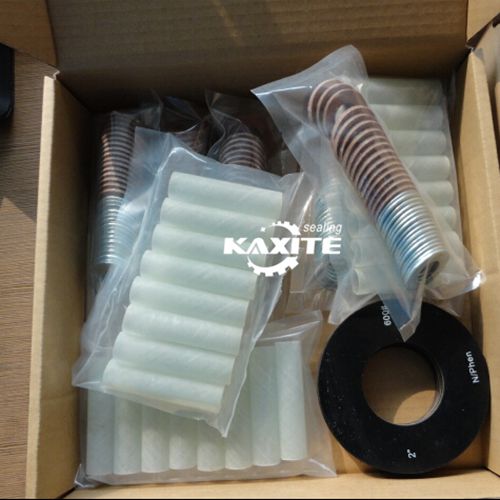

The G-10 washer is one component in a complete isolation kit. For the full kit configuration — central gasket, sleeves and washers — see the flange insulation gasket kit range. For G-10 sleeves as the matching component, see G10 insulation sleeves.
| Bolt size | Typical ID | Typical OD | Common thickness |
|---|---|---|---|
| M3 / #4 | 3.2–3.5 mm | 7–9 mm | 0.5–1.5 mm |
| M4 / #8 | 4.3–4.5 mm | 9–12 mm | 0.5–2.0 mm |
| M5 / #10 | 5.3–5.5 mm | 10–14 mm | 0.8–2.0 mm |
| M6 / 1/4″ | 6.4–6.7 mm | 12–18 mm | 1.0–3.0 mm |
| M8 / 5/16″ | 8.4–8.7 mm | 16–24 mm | 1.0–3.0 mm |
| M10 / 3/8″ | 10.5–10.8 mm | 20–30 mm | 1.5–4.0 mm |
| M12 / 1/2″ | 13.0–13.5 mm | 24–37 mm | 2.0–5.0 mm |
| M16–M24 / 5/8–1″ | 17–25 mm | 30–56 mm | 2.0–6.0 mm |
Dimensions above are industry reference ranges for standard bolt-clearance washers. For flange-kit service, the washer OD and thickness are matched to the nut and the flange facing; 1/8″ thickness is the flange-kit standard. Custom ID/OD/thickness combinations are machined to drawing. State the bolt size and kit requirement at inquiry.
The G-10 washer is the standard insulating washer in flange isolation kits for cathodic protection systems, where the bolting must be electrically isolated from the flange to prevent the protection current from grounding through the fastener. It is also specified for galvanic corrosion isolation between dissimilar metal flanges — aluminum to stainless, carbon steel to stainless, copper alloy to steel — where a metal-to-metal contact at the nut would create a corrosion cell. Other uses include replacement washers for existing kits, electrical isolation on busbar and switchgear hardware, and any bolted assembly where a non-conductive washer must carry bolt load without crushing. For a complete VCS kit where the washer is supplied with a metal-core gasket, see the VCS very critical service kit.
Standard bolt sizes: ship in 5–10 days. Custom ID/OD/thickness: 10–20 days. Custom cut MOQ: 500 pieces per size. OEM and wholesale pricing applies for volume orders. To quote correctly, specify: bolt size (or ID × OD × thickness), quantity per size, whether the washer is a standalone replacement or part of a complete kit, and any standard or drawing requirement (NEMA LI-1 G-10 / ASTM D709 G-10). This is a machined laminate part, not a catalog washer — the more precisely the dimensions and standard are stated, the faster the quotation.
Send bolt size or ID × OD × thickness, quantity, and whether this is a standalone replacement or a complete kit requirement. Engineering team confirms material grade, standard and lead time.
